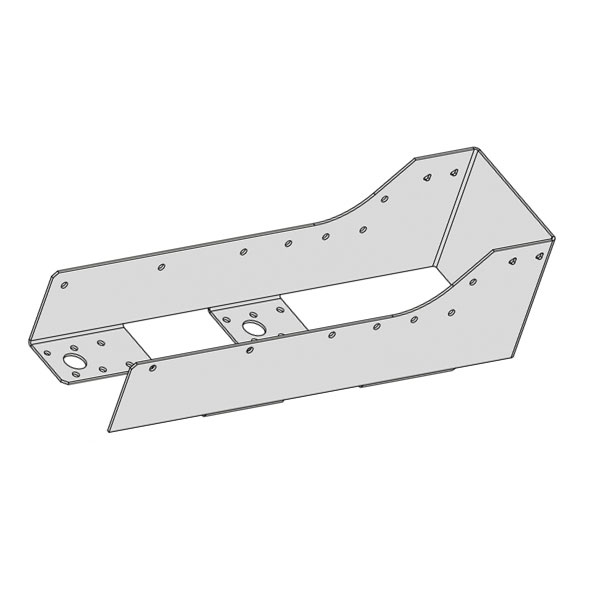

Cullen MHIC Multi Hanger Internal Flange

Cullen MHIC Multi Hanger Internal Flange

The Cullen MHIC Multi hanger internal flange is designed to support timber-timber connections in situations of medium to high loading.

The MHIC is a internaly flanged hanger where a width of 92mm or below is needed.

For internal flange applications above 92mm use MHI.

ADVANTAGES

• The MHIC has an INTERNAL flange fixing for timbers below 92mm.
• Range of sizes and potential fixing combinations, allow for greater design flexibility including qualified partial nail & bolt performance.

MATERIAL

• MHIC- Galvanised mild steel – Z275.
• For EXTERNAL flange fixing use MHE.
• For internal flange applications above 92mm use MHI.
